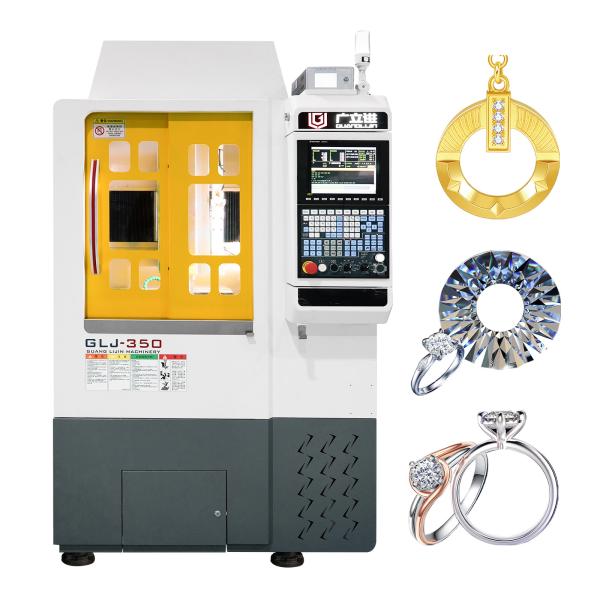

    G5-350 Jewelry Carving Milling And Five Axis Machine Cnc Machine Jewelry

    Ask Lasest Price
    Brand Name : GUANGLIJIN
    Model Number : G5-350 Jewelry Carving Milling And Five Axis Machine
    Certification : CE Certificate
    Payment Terms : T/T
    Supply Ability : 100 units/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    G5-350 Jewelry Carving Milling And Five Axis Machine Cnc Machine Jewelry

    Technical Parameters:

    No.ItemDetails
    1B axis reducerAlpha, GermanyRated torque 88.9n.m,
    Instaneous max. torque 312n.m,
    Rated speed 43 rpm, max. speed 85 rpm
    2C axis reducerTaiwanRated torque 15.3n.m,
    Instaneous max. torque 53.5n.m,
    Rated speed 250 rpm, max. speed 500 rpm
    3Transmission componentsRexroth, GermanyRepeatability: +/-0.005mm
    4OperationSYNTEC system220MA-10.4 inch screen operation box
    5Servo motor400w
    6Spindleelectric3.7kw, max. speed 40000 rpm
    water cooling with flow-alarm
    7Tool magazineservo-driveUp to 20 tools
    8Tool holderISO 20
    9Collet chuckER-16
    10LubricationTiming automatic oiling
    11Working flatness+/-0.015mm
    12X axis stroke350mm
    13Y axis stroke185mm
    14Z axis stroke220mm
    15Body weight1.5 tons
    16Front doorsliding door
    17Layout (mm)main body1150 width*1470 depth*2050 height
    18Power requirementthree-phase380v/50hz

    G5-350 Jewelry Carving Milling And Five Axis Machine Cnc Machine Jewelry

    Support and Services:

    Technical support
    Installation
    Training
    Maintenance
    Troubleshooting
    Software upgrade

    Packing and Shipping:

    Fumigation wooden case by sea or by air


    FAQ:

    Q: Are you a dealer or manufacturer?
    A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
    Q: Where are you from?
    A: We are from Shenzhen China, one of the most creative city in the world.
    Q: Do you provide overseas support or service?
    A: Yes, we have a technican team which can travel abroad to do global service and support.
    Q: Does this machine come with any certification?
    A: Our machines are CE certificated.
