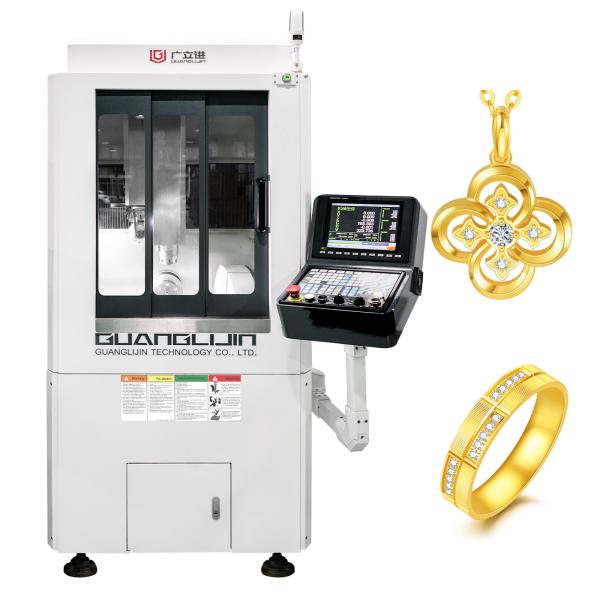

    G7-380 Jewelry Carving Milling Seven-Axis Machine

    Ask Lasest Price
    Brand Name : GUANGLIJIN
    Model Number : G7-380 Jewelry Carving Milling Seven-Axis Machine
    Certification : CE Certificate
    Payment Terms : T/T
    Supply Ability : 100 units/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    G7-380 Jewelry Carving Milling Seven-Axis Machine

    Technical Parameters:


    No.ItemDetails
    1B axis reducerAlpha, GermanyRated torque 88.9n.m,
    Instaneous max. torque 312n.m,
    Rated speed 43 rpm, max. speed 85 rpm
    2C axis reducerJapanrated torque 12.7n.m,
    Instaneous max. torque 44.6n.m,
    Rated speed 300 rpm, max. speed 600 rpm
    36th axisRexroth, GermanyRepeatability: +/-0.007mm
    47th axis spindleservo motormax. 10000rpm,
    max. dia. of round cutter: 70mm
    min. dia. of round cutter: 40mm
    5Transmission componentsRexroth, GermanyRepeatability: +/-0.005mm
    6OperationSYNTEC system220MA-10.4 inch screen operation box,
    max. extending 600mm on width at left side
    7Servo motor400w
    8Main spindleelectric3.7kw, max. speed 40000 rpm
    water cooling with flow-alarm
    9Tool magazineservo-driveUp to 15 tools
    10Tool holderISO20
    11Collet chuckER-16
    12LubricationTiming automatic oiling
    13Working flatness+/-0.005mm
    14X axis stroke400mm
    15Y axis stroke155mm
    16Z axis stroke235mm
    17Body weight1.6 tons
    18Front doorsliding door
    19Layout (mm)main body1300 width*1100 depth*2100 height
    20Power requirementthree-phase380v/50hz

    G7-380 Jewelry Carving Milling Seven-Axis Machine

    Support and Services:

    Technical support
    Installation
    Training
    Maintenance
    Troubleshooting
    Software upgrade


    Packing and Shipping:

    Fumigation wooden case by sea or by air


    FAQ:

    Q: Are you a dealer or manufacturer?
    A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
    Q: Where are you from?
    A: We are from Shenzhen China, one of the most creative city in the world.
    Q: Do you provide overseas support or service?
    A: Yes, we have a technican team which can travel abroad to do global service and support.
    Q: Does this machine come with any certification?
    A: Our machines are CE certificated.
