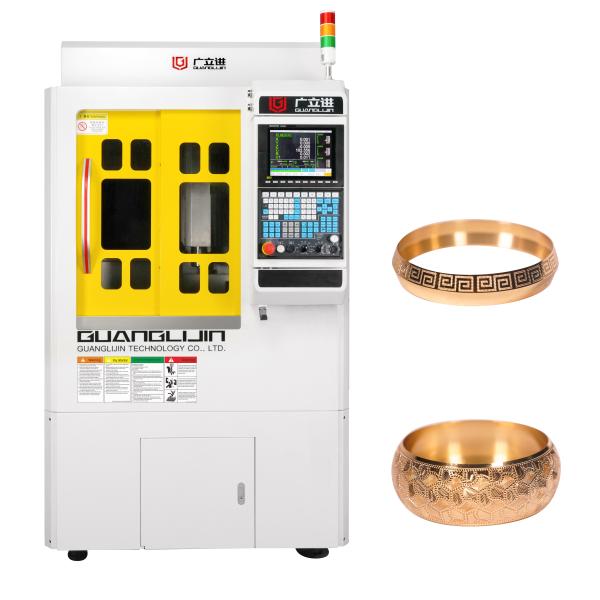

    G6-500 Six-Axis Batch Flower Machine

    Ask Lasest Price
    Brand Name : GUANGLIJIN
    Model Number : G6-500 Six-Axis Batch Flower Machine
    Certification : CE Certificate
    Payment Terms : T/T
    Supply Ability : 100 units/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    G6-500 Six-Axis Batch Flower Machine

    Technical Parameters:

    No.ItemDetails
    1A axis reducerAlpha, GermanyRated torque 88.9n.m,
    Instaneous max. torque 312n.m,
    Rated speed 43 rpm, max. speed 85 rpm
    2B axis reducerAlpha, GermanyRated torque 44.6n.m,
    Instaneous max. torque 156n.m,
    Rated speed 43 rpm, max. speed 85 rpm
    3C axis reducerJapanrated torque 12.7n.m,
    Instaneous max. torque 44.6n.m,
    Rated speed 300 rpm, max. speed 600 rpm
    4Transmission componentsRexroth, GermanyRepeatability: +/-0.005mm
    5OperationSYNTEC system220MA-10.4 inch screen operation box
    6Servo motor200w/400w/750w
    7Spindleelectric3.7kw, max. speed 45000 rpm
    water cooling with flow-alarm
    8Tool magazineservo-driveUp to 22 tools
    9Tool holderHSK E25
    10Collet chuckER-16
    11LubricationTiming automatic oiling
    12Working flatness+/-0.005mm
    13X axis stroke500mm
    14Y axis stroke160mm
    15Z axis stroke200mm
    16Body weight1.8 tons
    17Front doorsliding door
    18Layout (mm)main body1060 width*1300 depth*2100 height
    19Power requirementthree-phase380v/50hz

    G6-500 Six-Axis Batch Flower Machine

    Support and Services:

    Technical support
    Installation
    Training
    Maintenance
    Troubleshooting
    Software upgrade


    Packing and Shipping:

    Fumigation wooden case by sea or by air


    FAQ:

    Q: Are you a dealer or manufacturer?
    A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
    Q: Where are you from?
    A: We are from Shenzhen China, one of the most creative city in the world.
    Q: Do you provide overseas support or service?
    A: Yes, we have a technican team which can travel abroad to do global service and support.
    Q: Does this machine come with any certification?
    A: Our machines are CE certificated.
